Space Component Testing Rig

Development of a testing tool for a thermal vacuum chamber.

Starting from a design concept, analysis of each part for thermal/mechanical loads and producing the final design with manufacturing drawings ready for a workshop.

Concept
Analytics
Product Sheet

Deployment in Vacuum testing

Development of a mechanical testing tool for a thermal vacuum chamber.

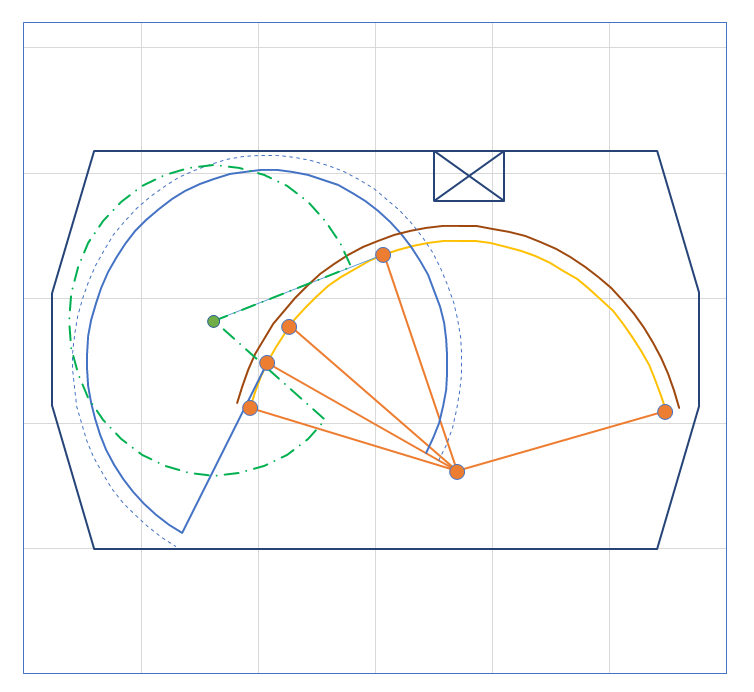

An early stage kinematic model of to verify space limitation compliance.

Components selection for target environmental conditions, stiffness analysis, components thermal analysis.

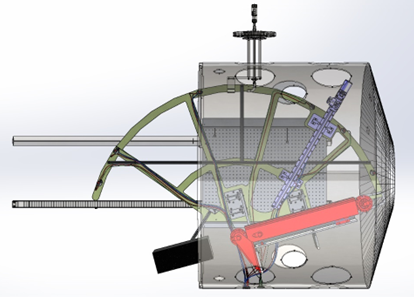

Detail design

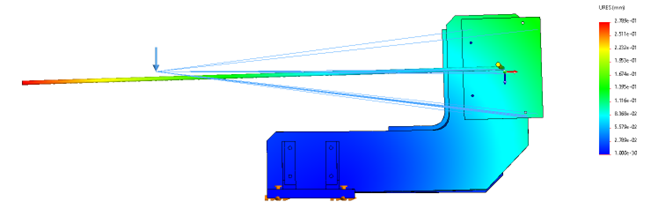

Deformation under specified load conditions

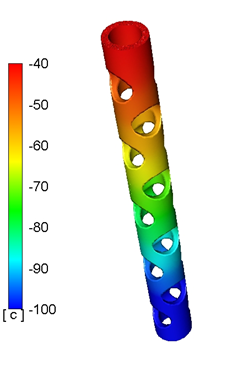

Thermal analysis
